Specifications is where I5 stores a local copy of the latest interrogation site configuration information and transceiver specifications.

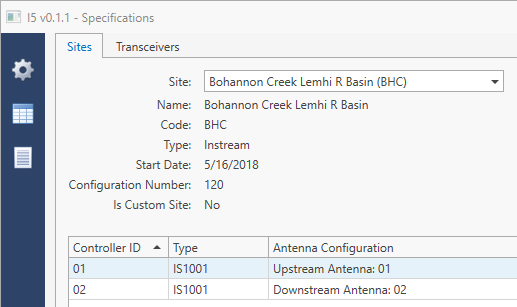

Sites

I5 stores a local copy of all the active interrogation site configurations downloaded from the PTAGIS API.





Select a Site from the list to view:

•Site Name

•Site Code

•Site Type

•Configuration Sequence Number (the current configuration version)

•Start Date of that configuration

•Controller/Transceiver ID and Type

•Antenna Groups and IDs

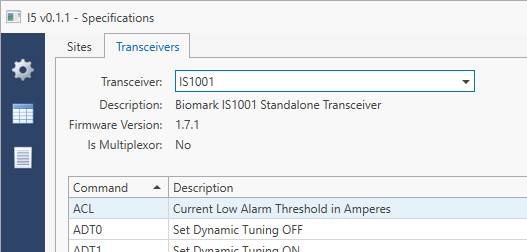

Transceivers

I5 also stores a local copy of the specifications for the latest firmware version of all commonly used transceivers in the Columbia River basin.





Select a Transceiver from the list to view:

•Transceiver description

•Firmware version supported by PTAGIS

•Multiplexor Yes/No

•A list of commands that can be sent to that type of transceiver





Updates

To download the latest version of either Site Configurations or Transceiver Specifications, click the Update button in the lower right corner. This will be necessary if your interrogation site configuration was recently updated in PTAGIS or if a new version of firmware has been released for one of the transceivers. If the interrogation site configuration has been updated, any existing site connections and download scripts for that site will be deleted and will need to be re-created. Any existing Site Datasets or Interrogation Files will not be affected.
