A site or configuration diagram should be created for each new Configuration Sequence number for a specific site. These diagrams are currently only available on each site's metadata page.

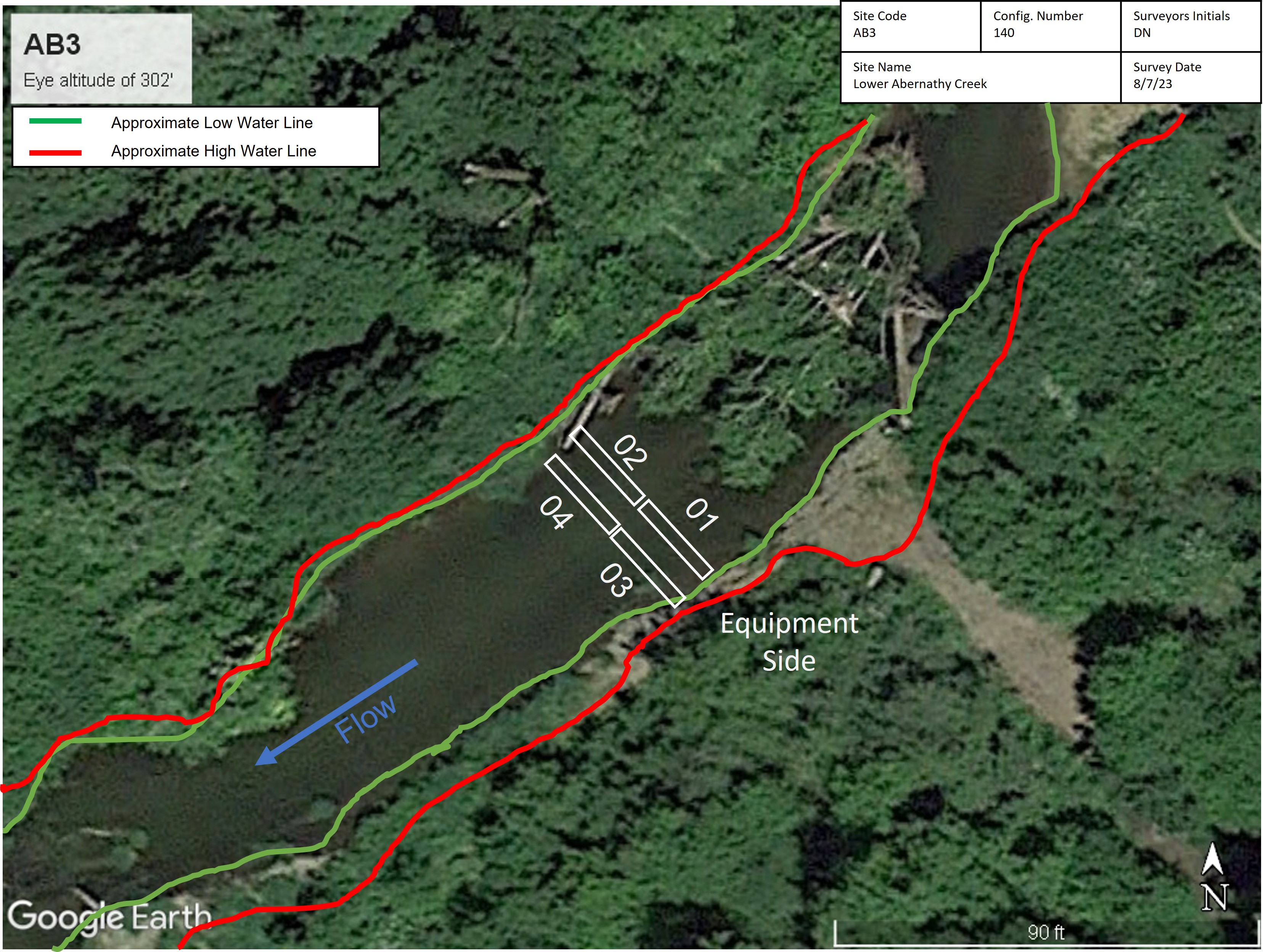

Current requirements for site diagrams are to show the arrangement of antennas at the site with regard to water flow and the facility or stream in which the site is located. Site diagrams can also contain other details, such as the location of transceivers and other equipment, power source, local landmarks, and pictures of the site.
