The MRR submission manifest file is included in the zip file package when one or more P4 files are submitted to PTAGIS. It is an XML file, with an XSD that defines its requirements, that transmits information about the data submitter, the file(s) being submitted, and the operation to use with each file (Load or Correct).



MRRSubmissionManifest

Schema MRRSubmissionManifest.xsd


schema location:  https://www.ptagis.org/schemas/MRR/P4/manifest/01/MRRSubmissionManifest.xsd
attributeFormDefault:  unqualified
elementFormDefault:  qualified

Elements
MRRSubmissionManifest


element MRRSubmissionManifest
diagram MRRSubmissionManifest_p1.png
properties
content complex

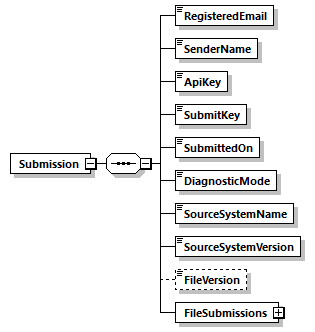

element MRRSubmissionManifest/Submission
diagram MRRSubmissionManifest_p2.png
properties
content complex

element MRRSubmissionManifest/Submission/RegisteredEmail
diagram MRRSubmissionManifest_p3.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
maxLength 50

element MRRSubmissionManifest/Submission/SenderName
diagram MRRSubmissionManifest_p4.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
maxLength 50

element MRRSubmissionManifest/Submission/ApiKey
diagram MRRSubmissionManifest_p5.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
maxLength 36

element MRRSubmissionManifest/Submission/SubmitKey
diagram MRRSubmissionManifest_p6.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
maxLength 36

element MRRSubmissionManifest/Submission/SubmittedOn
diagram MRRSubmissionManifest_p7.png
type xsd:dateTime
properties
content simple

element MRRSubmissionManifest/Submission/DiagnosticMode
diagram MRRSubmissionManifest_p8.png
type xsd:boolean
properties
content simple
default 0

element MRRSubmissionManifest/Submission/SourceSystemName
diagram MRRSubmissionManifest_p9.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
maxLength 25

element MRRSubmissionManifest/Submission/SourceSystemVersion
diagram MRRSubmissionManifest_p10.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
maxLength 25

element MRRSubmissionManifest/Submission/FileVersion
diagram MRRSubmissionManifest_p11.png
type restriction of xsd:string
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
maxLength 25

element MRRSubmissionManifest/Submission/FileSubmissions
diagram MRRSubmissionManifest_p12.png
properties
content complex

element MRRSubmissionManifest/Submission/FileSubmissions/MRRFileSubmission
diagram MRRSubmissionManifest_p13.png
properties
minOcc 1
maxOcc unbounded
content complex

element MRRSubmissionManifest/Submission/FileSubmissions/MRRFileSubmission/DataFileName
diagram MRRSubmissionManifest_p14.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
maxLength 50

element MRRSubmissionManifest/Submission/FileSubmissions/MRRFileSubmission/Operation
diagram MRRSubmissionManifest_p15.png
type restriction of xsd:string
properties
content simple
facets
Kind Value Annotation
maxLength 7
enumeration Load
enumeration Correct
